Remote Series (xF)

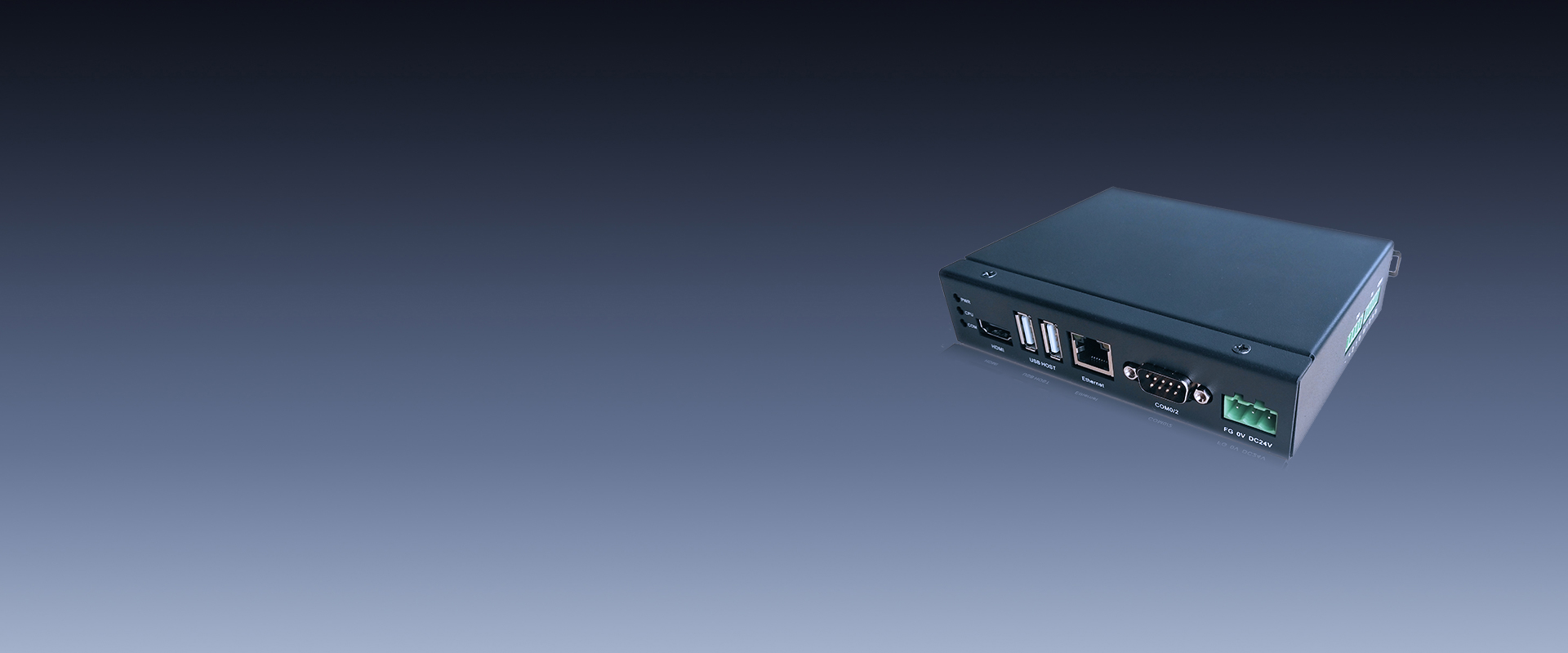

A split-type industrial HMI featuring an innovative decoupled design that separates the display from the main processing unit.
xF-SiHMI01

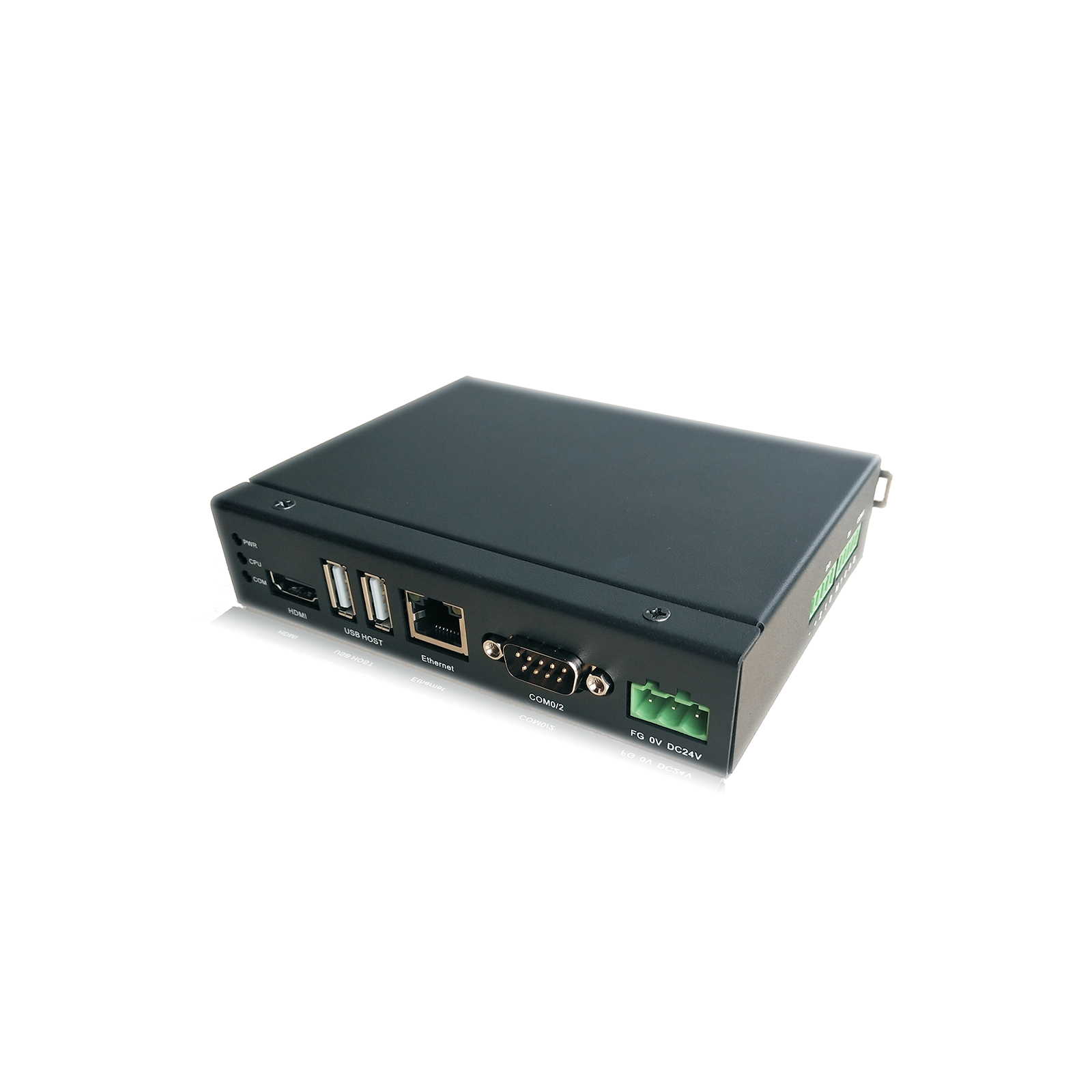

The xF-SiHMI01 is Kinco’s screenless, split-type industrial HMI, featuring an innovative decoupled architecture that separates the display from the main unit. It delivers flexible display solutions by supporting various monitors, TVs, and projectors via HDMI, and with its high-end configuration and versatile interfaces, serves as an optimal solution for industrial monitoring and control, particularly in applications demanding large-format visualization or specialized installation environments.
Product Model
xF-SiHMI01
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
-
Display Area (W x H)
-
Resolution
-
Colors
-
Viewing Angle (T/B/L/R)
-
Contrast Ratio
-
Backlight
-
Brightness
-
Backlight Life Time
-
Processor
Fold up
Expand
CPU
RISC 32Bit Coetex-A9 1GHz
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
512M
Flash Memory
4GB
Interfaces
Fold up
Expand
USB Host
2
USB Slave
1
Ethernet
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485
COM2:RS232
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
2x DI, 3x DO, 1x 24V DC output
HDMI
1
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC12V-28V
Power Consumption
2.4W@24VDC
Voltage Interruption Immunity
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Dimensions (W x H x D)
133 x 104 x 30 mm
Cut-out Dimensions
-
Mounting
DIN Rail Mounting (35mm) & Bracket Mounting (75*75)
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-30~80°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
Serial Port Isolation
-
PCB Coating
-
Protection Grade
IP20
Certifications
Fold up
Expand
CE Certificate
EN IEC 61000-6-2:2019; EN IEC 61000-6-4:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Remote Maintenance Platform
EdgeAccess1.0
