Green Series 2 - General Type (GL2)
Green Series II Basic (GL2)
The Kinco Green Series II Basic (GL2) is a cost‑optimized evolution of the original GL platform, delivering enhanced HMI performance for mainstream automation applications. Built around an ARM Cortex‑A7 dual‑core 1 GHz processor with 256 MB DDR3 and 4 GB eMMC, it integrates standard Ethernet and serial interfaces, an IP65‑rated front panel, and wide‑temperature operation capability. Available in 4.3″, 7″, and 10.1″ display sizes with optional Wi‑Fi/4G connectivity, the GL2 is well suited to logistics, packaging, food processing, construction machinery, and electronics manufacturing. It provides high‑performance, cost‑efficient HMI solutions for intelligent, connected equipment.
Related Products
Product Model
GL2043HE
Add comparison
Cancel comparison

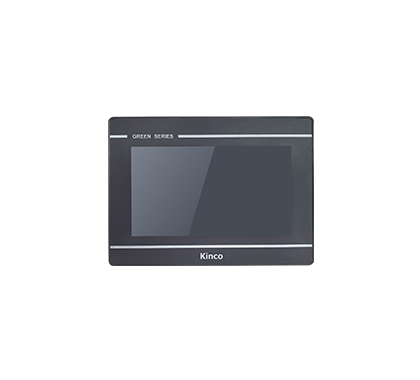

GL2070HE
Add comparison
Cancel comparison
GL2070HE-4G
Add comparison
Cancel comparison
GL2070HE-WIFI
Add comparison
Cancel comparison

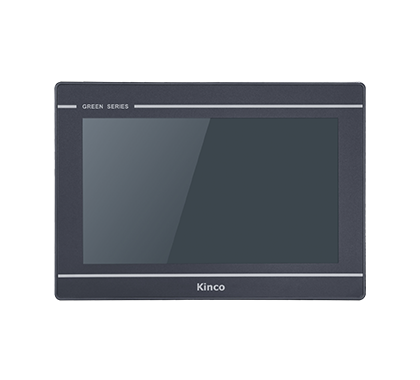

GL2100E
Add comparison
Cancel comparison
GL2100E-4G
Add comparison
Cancel comparison
GL2100E-WIFI
Add comparison
Cancel comparison

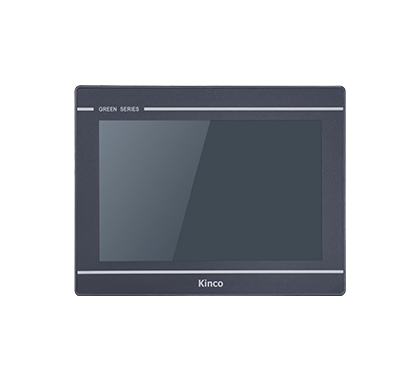

GL2101E
Add comparison
Cancel comparison
GL2101E-4G
Add comparison
Cancel comparison
GL2101E-WIFI
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3"
7"
7"
7"
10.1"
10.1"
10.1"
10.1"
--
--
Display Area (W x H)
95.04 x 54.71 mm
154.21 x 85.92 mm
154.21 x 85.92 mm
154.21 x 85.92 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
--
--
Resolution
800*480
1024*600
1024*600
1024*600
1024*600
1024*600
1024*600
1024*600
--
--
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.2 million
16.2 million
16.2 million
16.2 million
--
--
Viewing Angle (T/B/L/R)
80/80/80/80
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
--
--
Contrast Ratio
1200:1
800:1
800:1
800:1
500:1
500:1
500:1
500:1
--
--
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
--
--
Backlight Life Time
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
--
--
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
--
--
Processor
Fold up
Expand
CPU
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
--
--
GPU
-
-
-
-
-
-
-
-
--
--
NPU
-
-
-
-
-
-
-
-
--
--
Memory
Fold up
Expand
RAM
256M
256M
256M
256M
256M
256M
256M
256M
--
--
Flash Memory
4G
4G
4G
4G
4G
4G
4G
4G
--
--
Interfaces
Fold up
Expand
USB Host
0
1
1
1
1
1
1
1
--
--
USB Slave
1
1
1
1
1
1
1
1
--
--
Ethernet
1
1
1
1
1
1
1
1
--
--
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
--
--
4G
-
-
LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
-
-
LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
-
-
--
--
Wi-Fi
-
-
-
IEE802.11 b/g/n
-
-
IEE802.11 b/g/n
-
--
--
Audio Interface
-
-
-
-
-
-
-
-
--
--
Other Interfaces
-
-
-
-
-
-
-
-
--
--
HDMI
-
-
-
-
-
-
-
-
--
--
RFID
-
-
-
-
-
-
-
-
--
--
Programmable Keys
-
-
-
-
-
-
-
-
--
--
Selector Switch
-
-
-
-
-
-
-
-
--
--
Emergenccy Stop
-
-
-
-
-
-
-
-
--
--
Grip Switch
-
-
-
-
-
-
-
-
--
--
LED Indicator
-
-
-
-
-
-
-
-
--
--
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
--
--
Power Consumption
2W@24VDC
4.2W@24VDC
4.2W@24VDC
4.2W@24VDC
6W@24VDC
6W@24VDC
6W@24VDC
6W@24VDC
--
--
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
--
--
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
--
--
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
--
--
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
--
--
Dimensions (W x H x D)
132 x 102 x 33 mm
204 x 150 x 37 mm
204 x 150 x 37 mm
204 x 150 x 37 mm
271 x 191 x 36 mm
271 x 191 x 36 mm
271 x 191 x 36 mm
271 x 213 x 38 mm
--
--
Cut-out Dimensions
119 x 93 mm
192 x 138 mm
192 x 138 mm
192 x 138 mm
260 x 179 mm
260 x 179 mm
260 x 179 mm
260 x 202 mm
--
--
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
--
--
Cable
-
-
-
-
-
-
-
-
--
--
Mounting Accessories
-
-
-
-
-
-
-
-
--
--
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
--
--
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
--
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
--
--
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
--
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
--
--
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
--
--
Protection
Fold up
Expand
Power Isolation
-
-
-
-
-
-
-
-
--
--
Serial Port Isolation
-
-
-
-
-
-
-
-
--
--
PCB Coating
-
-
-
-
-
-
-
-
--
--
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
--
--
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
--
--
UL Certificate
-
-
-
-
-
-
-
-
--
--
Software
Fold up
Expand
Configuration Software
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
--
--
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
--
--
