Mass Series 2 (M2)
Premium Intelligent HMI Engineered for Advanced Manufacturing

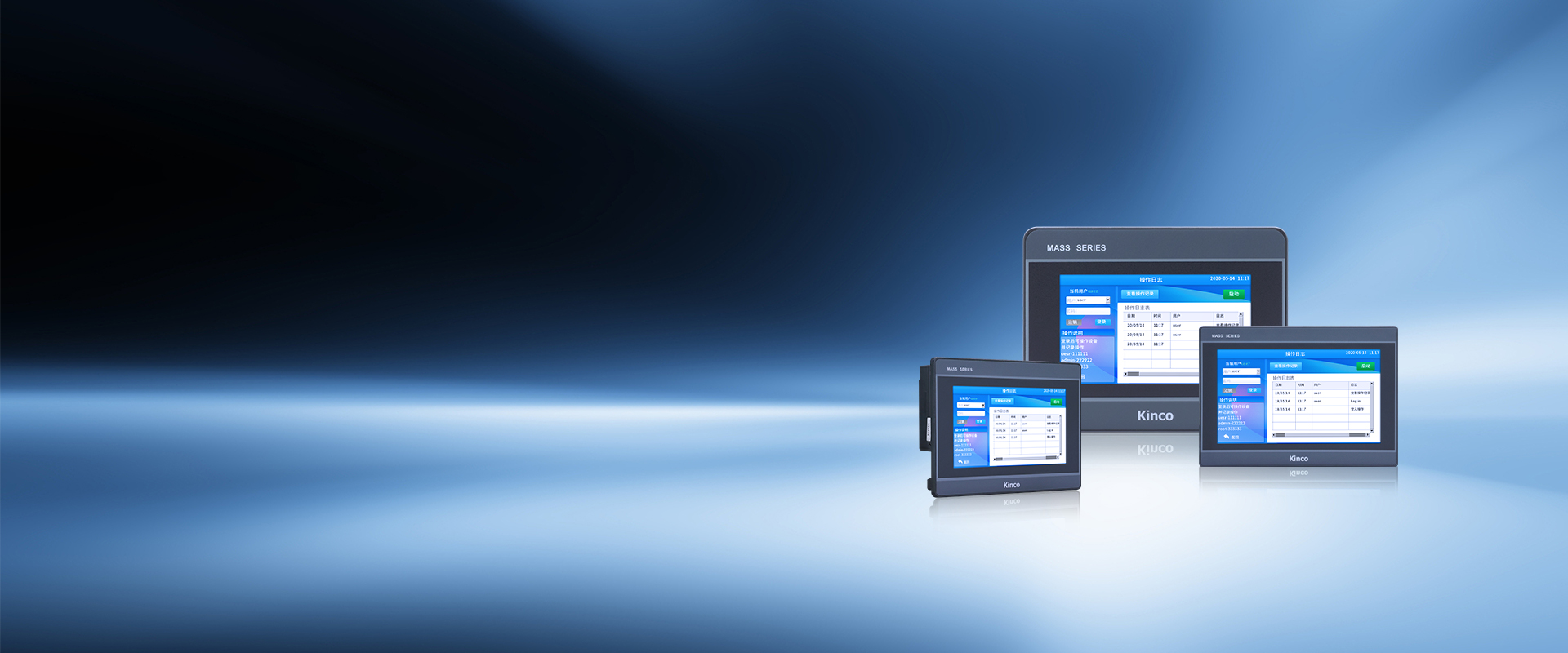

MASS Series II HMI
The Kinco MASS Series II HMI is a premium intelligent interface engineered for advanced manufacturing, delivering robust performance powered by a multi-core processor and HD visualization.
HD Multi-Core, Superior Performance
Industrial-grade multi-core CPU;
10.1" display with 16.2M true colors;
256MB NAND flash + 128MB DDR3 RAM.
Compatible with multiple protocols and databases, supports remote operation & maintenance and security management
Compatible with multiple protocols and databases, supports remote operation & maintenance and security management
High protection, high reliability
High-protection design adapts to harsh industrial environments, dustproof, moisture-proof and anti-interference; high reliability ensures long-term stable operation
Application Scenarios
锂电行业
3C电子
Close
Product Model

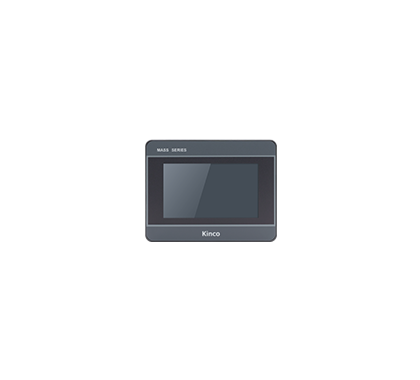

M2043H
Add comparison
Cancel comparison
M2043HE
Add comparison
Cancel comparison

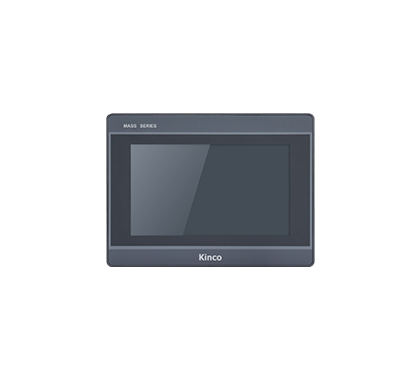

M2070H
Add comparison
Cancel comparison
M2070HE
Add comparison
Cancel comparison
M2070HE-WIFI
Add comparison
Cancel comparison

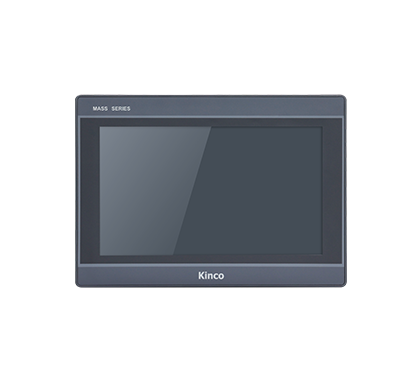

M2100
Add comparison
Cancel comparison
M2100E
Add comparison
Cancel comparison
M2100E-WIFI
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3"
4.3"
7"
7"
7"
10.1"
10.1"
10.1"
Display Area (W x H)
95.04 x 53.86 mm
95.04 x 53.86 mm
154.21 x 85.92 mm
154.21 x 85.92 mm
154.21 x 85.92 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
Resolution
800*480
800*480
1024*600
1024*600
1024*600
1024*600
1024*600
1024*600
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.2 million
16.2 million
16.2 million
Viewing Angle (T/B/L/R)
80/80/80/80
80/80/80/80
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
Contrast Ratio
1200:1
1200:1
800:1
800:1
800:1
500:1
500:1
500:1
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
Brightness
500 cd/m²
500 cd/m²
450 cd/m²
450 cd/m²
450 cd/m²
300 cd/m²
300 cd/m²
300 cd/m²
Backlight Life Time
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
Processor
Fold up
Expand
CPU
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
GPU
-
-
-
-
-
-
-
-
NPU
-
-
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
128M
128M
128M
128M
128M
128M
128M
128M
Flash Memory
256M
256M
256M
256M
256M
256M
256M
256M
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
1
1
USB Slave
-
-
1
1
1
1
1
1
Ethernet
-
-
-
-
-
-
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
4G
-
-
-
-
-
-
-
-
Wi-Fi
-
-
-
-
IEE802.11 b/g/n
-
-
IEE802.11 b/g/n
Audio Interface
-
-
-
-
-
-
-
-
Other Interfaces
-
-
-
-
-
-
-
-
HDMI
-
-
-
-
-
-
-
-
RFID
-
-
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
Power Consumption
2W@24VDC
2W@24VDC
4.2W@24VDC
4.2W@24VDC
4.2W@24VDC
6W@24VDC
6W@24VDC
6W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Dimensions (W x H x D)
132 x 102 x 33 mm
132 x 102 x 33 mm
204 x 150 x 37 mm
204 x 150 x 37 mm
204 x 150 x 37 mm
271 x 191 x 36 mm
271 x 191 x 36 mm
271 x 191 x 36 mm
Cut-out Dimensions
119 x 93 mm
119 x 93 mm
192 x 138 mm
192 x 138 mm
192 x 138 mm
260 x 179 mm
260 x 179 mm
260 x 179 mm
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Cable
-
-
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
-
-
-
-
-
-
-
Serial Port Isolation
-
-
-
-
-
-
-
-
PCB Coating
-
-
-
-
-
-
-
-
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
-
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
