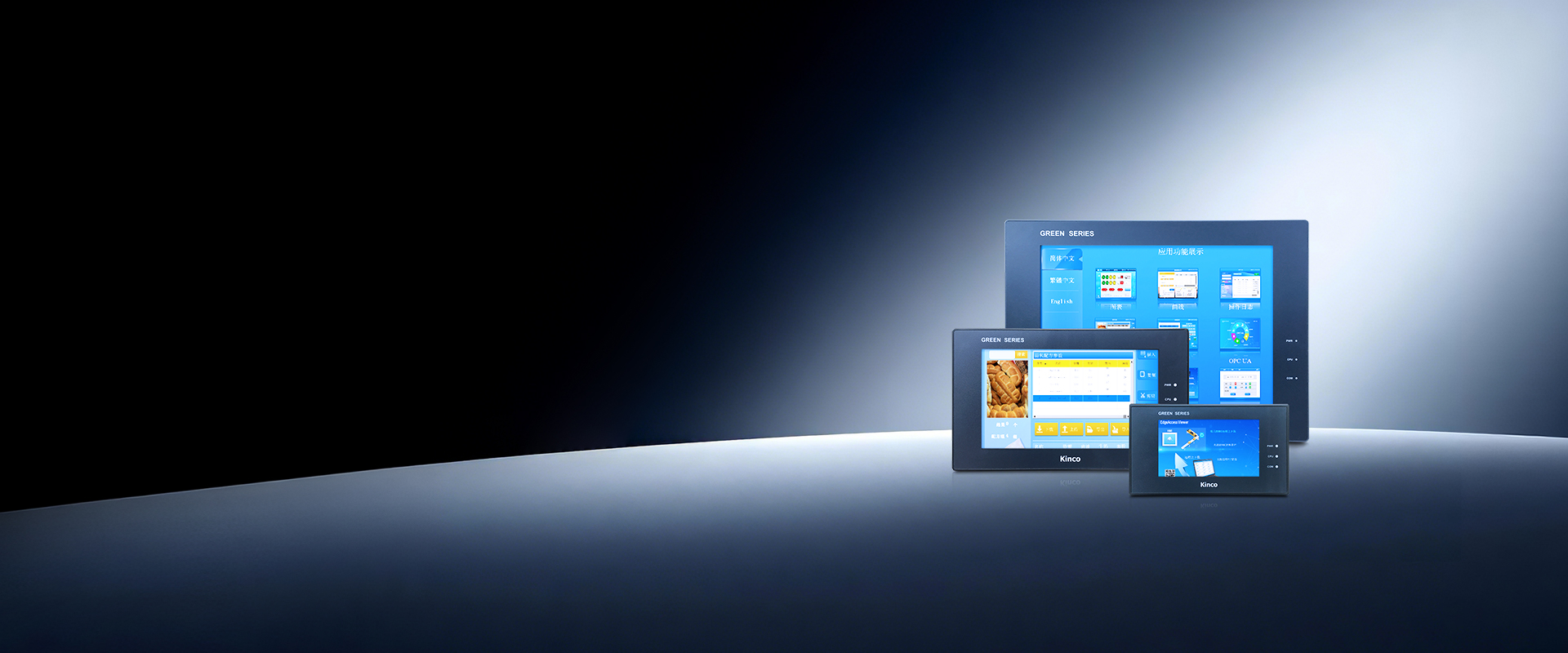

Green Series - Enhanced (GH)
Premium Smart HMI for Advanced Manufacturing
GREEN Series Enhanced HMI
The Green Series Enhanced (GH) industrial HMIs serve as all-round flexible solutions for a full range of automation equipment, integrating rugged, field-validated stability, high-performance hardware, abundant communication ports, and an intuitive programming environment. Suited for round-the-clock production lines, harsh industrial operating conditions, and network-monitored smart machinery alike, the GH Series consistently delivers reliable, high-efficiency operation. It boosts overall production throughput, cuts routine maintenance expenses, and elevates machine safety standards — forming a fully cost-optimized HMI platform for universal industrial automation deployments.
Related Products
Product Model
GH043
Add comparison
Cancel comparison

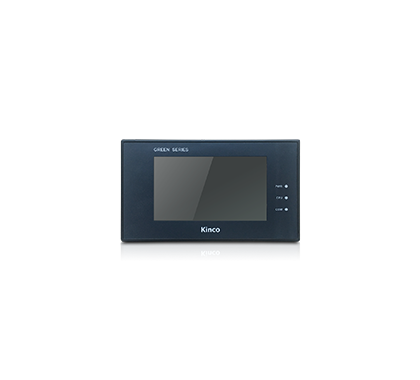

GH043E
Add comparison
Cancel comparison
GH070
Add comparison
Cancel comparison

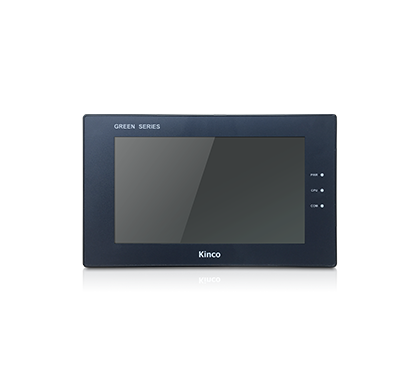

GH070E
Add comparison
Cancel comparison

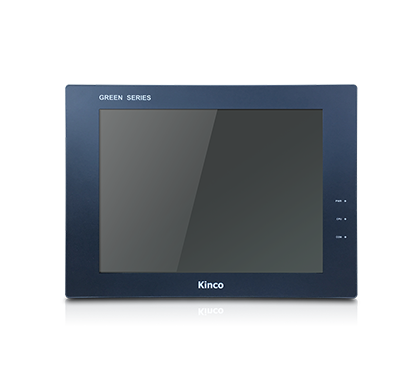

GH104E
Add comparison
Cancel comparison

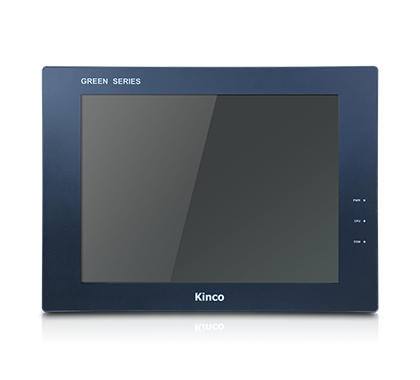

GH150E
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3"
4.3"
7"
7"
10.4"
15"
Display Area (W x H)
95.04 x 53.86 mm
95.04mm x 53.86 mm
154.08 x 85.92 mm
154.08 x 85.92 mm
211.2 x 158.4 mm
304.13 x 228.1 mm
Resolution
480*272
480*272
800*480
800*480
800*600
1024*768
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
65535
Viewing Angle (T/B/L/R)
50/70/70/70
50/70/70/70
50/70/70/70
50/70/70/70
60/70/70/70
80/80/80/80
Contrast Ratio
500:1
500:1
500:1
500:1
500:1
500:1
Backlight
LED
LED
LED
LED
LED
LED
Brightness
300 cd/m²
300 cd/m²
400 cd/m²
400 cd/m²
350 cd/m²
420 cd/m²
Backlight Life Time
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
Processor
Fold up
Expand
CPU
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 800MHz
GPU
-
-
-
-
-
-
NPU
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
128M
128M
128M
128M
128M
128M
Flash Memory
256M
256M
256M
256M
256M
256M
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
USB Slave
1
1
1
1
1
1
Ethernet
-
1
-
1
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
4G
-
-
-
-
-
-
Wi-Fi
-
-
-
-
-
-
Audio Interface
-
-
-
-
-
-
Other Interfaces
-
1*SD Card
-
1*SD Card
1*SD Card
1*SD Card
HDMI
-
-
-
-
-
-
RFID
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC12V-28V
DC12V-28V
DC10.8V-28V
DC10.8V-28V
Power Consumption
3.5W@24VDC
2W@24VDC
5W@24VDC
5W@24VDC
8W@24VDC
16W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Dimensions (W x H x D)
154 x 89 x 60 mm
154 x 89 x 60 mm
207 x 125 x 41 mm
207 x 125 x 41 mm
310 x 230 x 56 mm
398 x 298 x 47 mm
Cut-out Dimensions
146 x 81 mm
146 x 81 mm
194 x 113 mm
194 x 113 mm
299 x 219 mm
383 x 283 mm
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Cable
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
-20~55°C
-20~55°C
-10~55°C
-10~55°C
-10~55°C
-10~55°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-25~60°C
-25~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
Yes
Yes
Yes
PCB Coating
Yes
Yes
Yes
Yes
Yes
Yes
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
-
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
EdgeAccess1.0
