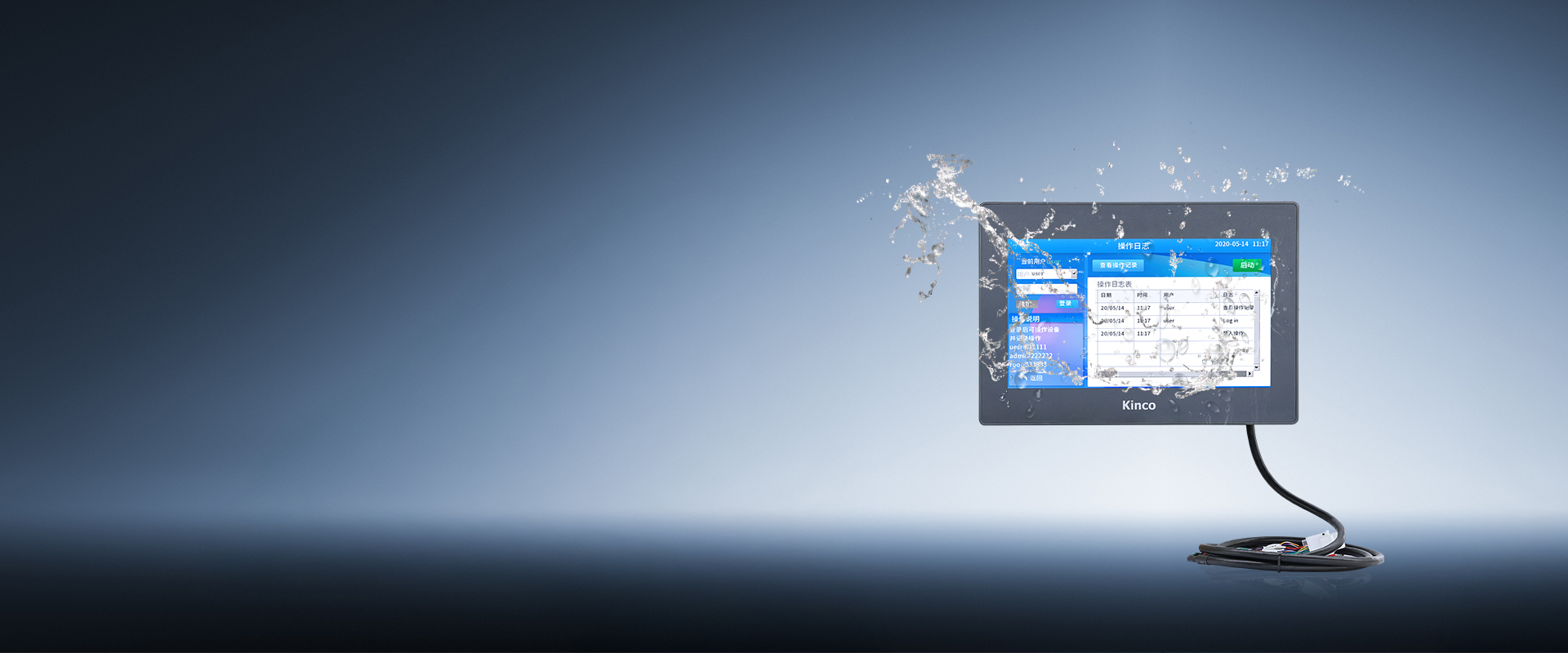

Waterproof Series
Waterproof Series
Product Model

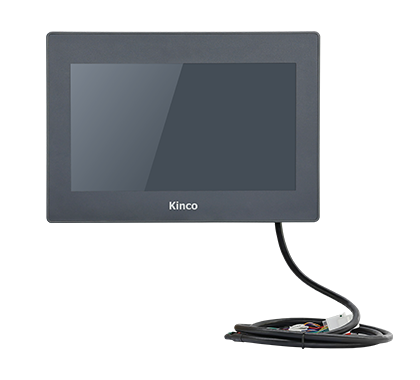

G100E-LRF
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1"
Display Area (W x H)
222.72 x 125.28 mm
Resolution
1024*600
Colors
16.2 million
Viewing Angle (T/B/L/R)
-
Contrast Ratio
500:1
Backlight
LED
Brightness
300 cd/m²
Backlight Life Time
30000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
Processor
Fold up
Expand
CPU
ARM RISC32Bit 792MHz
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
128M
Flash Memory
256M
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
1
Communication Port
COM0:RS232/RS485;
COM2:RS232
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
-
HDMI
-
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC10V-28V
Power Consumption
6W@24VDC
Voltage Interruption Immunity
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Dimensions (W x H x D)
271 x 191 x 36 mm
Cut-out Dimensions
260 x 180 mm
Mounting
Panel mounting & Bracket mounting
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Built-in
Serial Port Isolation
-
PCB Coating
-
Protection Grade
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
-
UL Certificate
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Remote Maintenance Platform
EdgeAccess1.0
