Open Frame Series
Product Model

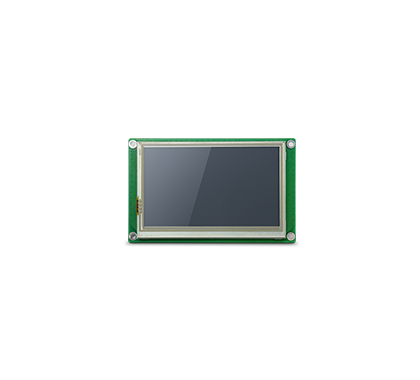

MR043
Add comparison
Cancel comparison
MR043H
Add comparison
Cancel comparison

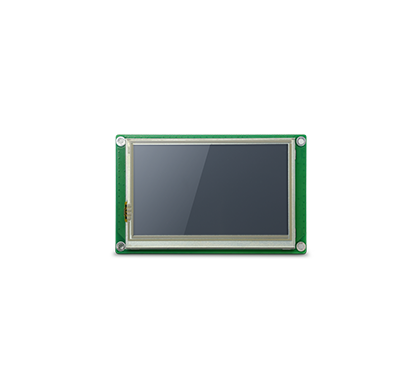

MR050
Add comparison
Cancel comparison

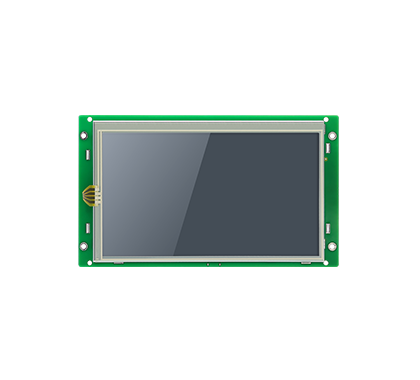

MR2070HE
Add comparison
Cancel comparison

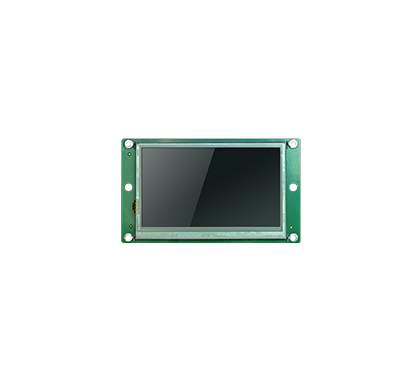

GR043
Add comparison
Cancel comparison

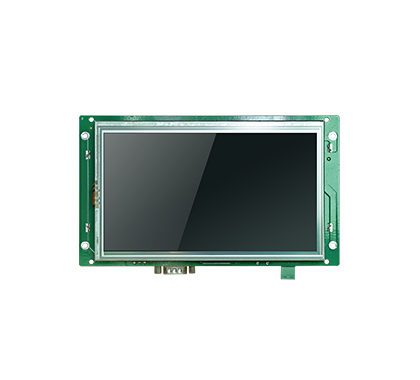

GR070E
Add comparison
Cancel comparison

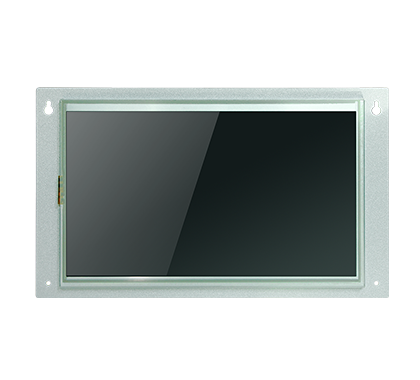

GR100E
Add comparison
Cancel comparison

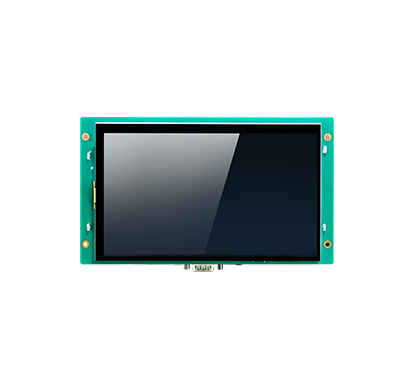

GR2070HE-LX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3"
4.3"
5"
7"
4.3"
7"
10.1"
7"
Display Area (W x H)
95.04 x 53.86 mm
95.04 x 53.86 mm
108 x 64.8 mm
154.21 x 85.92 mm
-
-
-
154.21 x 85.92 mm
Resolution
480*272
800*480
800*480
1024*600
480*272
800*480
1024*600
1024*600
Colors
256K
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
50/70/70/70
85/85/85/85
50/70/70/70
85/85/85/85
-
-
-
85/85/85/85
Contrast Ratio
500:1
1200:1
500:1
800:1
-
-
-
800:1
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
Brightness
450 cd/m²
400 cd/m²
400 cd/m²
450 cd/m²
450 cd/m²
250 cd/m²
400 cd/m²
450 cd/m²
Backlight Life Time
50000 hours
30000 hours
50000 hours
30000 hours
30000 hours
30000 hours
30000 hours
30000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
双核ARM 1GHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
Quad-core ARM 1.5GHz
GPU
-
-
-
-
-
-
-
-
NPU
-
-
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
64M
64M
64M
128M
128M
128M
128M
512M
Flash Memory
128M
128M
128M
256M
256M
256M
256M
4GB
Interfaces
Fold up
Expand
USB Host
-
-
-
-
1
1
1
1
USB Slave
1
1
1
1
1
1
1
1
Ethernet
-
-
-
1
-
1
1
1
Communication Port
COM0:RS485;
COM2:RS232
COM0:RS485;
COM2:RS232
COM0:RS485;
COM2:RS232
COM0:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
4G
-
-
-
-
-
-
-
-
Wi-Fi
-
-
-
-
-
-
-
-
Audio Interface
-
-
-
-
-
-
-
-
Other Interfaces
-
-
-
-
-
-
-
-
HDMI
-
-
-
-
-
-
-
-
RFID
-
-
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10V-28V
DC10V-28V
DC10V-28V
DC18V-28V
Power Consumption
2W@24VDC
2W@24VDC
2W@24VDC
4.2W@24VDC
2W@24VDC
3.6W@24VDC
6W@24VDC
7W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Frameless
Frameless
Frameless
Frameless
Frameless
Frameless, metal rear cover
Frameless, metal rear cover
Frameless, metal rear cover
Dimensions (W x H x D)
122 x 75 x 15 mm
122 x 75 x 15 mm
132 x 140 x 37 mm
190 x 110 x 30 mm
128 x 75 x 27 mm
190 x 110 x 30 mm
276 x 164 x 32 mm
190 x 110 x 30 mm
Cut-out Dimensions
115 x 66 mm
115 x 66 mm
-
166 x 101 mm
107 x 69 mm
166 x 101 mm
238 x 148 mm
154 x 86 mm
Mounting
Rear mounting
Rear mounting
Rear mounting
Rear mounting
Rear mounting
Rear mounting
Rear mounting
Rear mounting
Cable
-
-
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
-
-
-
-
-
-
-
Serial Port Isolation
-
-
-
-
-
-
-
-
PCB Coating
-
-
-
Yes
-
-
-
-
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DToolsPro
Remote Maintenance Platform
-
-
-
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
EdgeAccess2.0
