Integrated Button Panels
Product Model

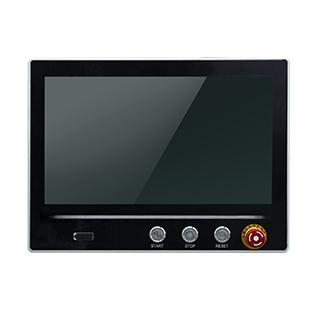

F2156E-TX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
15.6"
Display Area (W x H)
344.16 x 193.59 mm
Resolution
1920*1080
Colors
16.7 million
Viewing Angle (T/B/L/R)
89/89/89/89
Contrast Ratio
1000:1
Backlight
LED
Brightness
300 cd/m²
Backlight Life Time
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
1GB
Flash Memory
8GB
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
1
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
-
HDMI
-
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
1
Grip Switch
-
LED Indicator
3x Metal Buttons (Red/Blue/Green)
Electrical
Fold up
Expand
Input Power
DC18V-28V
Power Consumption
15W@24VDC
Voltage Interruption Immunity
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Dimensions (W x H x D)
397 x 297 x 46 mm
Cut-out Dimensions
118 x 70 mm
Mounting
Arm mounting
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
Operating Humidity
0~90%RH (Non-condensing)
Storage Temperature
-20~60°C
Storage Humidity
0~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Serial Port Isolation
-
PCB Coating
Yes
Protection Grade
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
Kinco DToolsPro
Remote Maintenance Platform
EdgeAccess2.0
