Green Series 2 - Capacitive Touch Screen (G2 X)
Industrial capacitive touch: efficient, smooth and stylish

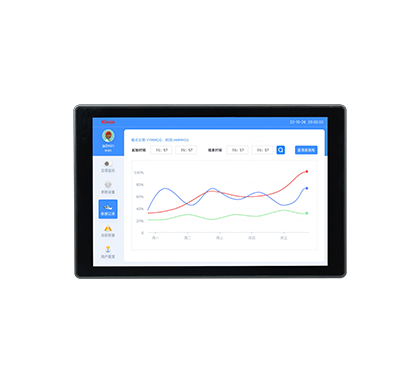

Kinco G2100HE-LX: GREEN Series II flagship HMI.10.1" screen in 7" cutout, quad-core 1.5GHz CPU, capacitive touch.Space-saving yet high-performance for industrial automation.
10.1" display fits 7" cutout, saves installation space;
Quad-core 1.5GHz CPU, 512MB RAM, 4GB Flash for complex projects;
Capacitive multi-touch with smooth gesture control;
1280×800 IPS, 16.77M colors, 85° wide view, 350cd/㎡ brightness.
Product Model

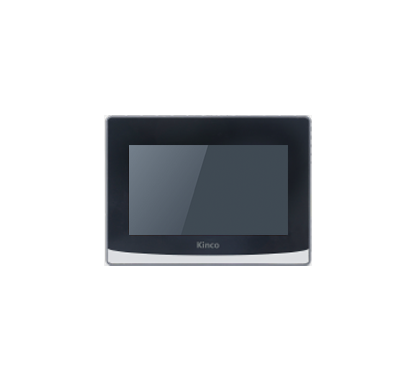

GL2070HE-LX
Add comparison
Cancel comparison

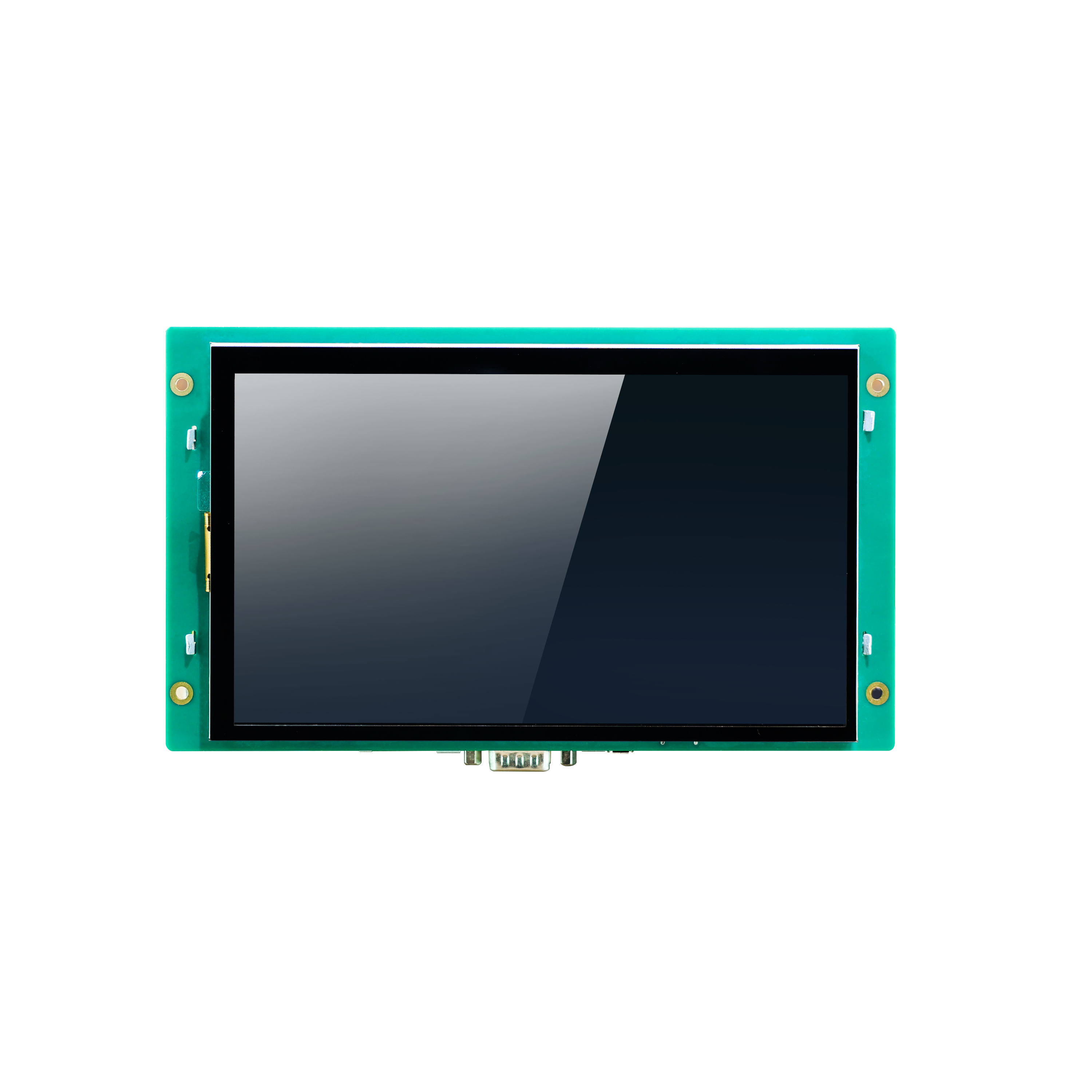

GR2070HE-LX
Add comparison
Cancel comparison
GR2104E-PX
Add comparison
Cancel comparison
GR2121E-PX
Add comparison
Cancel comparison
G2100HE-LX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
7"
7"
10.4"
12.1"
10.1"
Display Area (W x H)
154.21 x 85.92 mm
154.21 x 85.92 mm
210.43 x 157.82 mm
245.76 x 184.32 mm
216.58 x 135.36 mm
Resolution
1024*600
1024*600
1024*768
1024*768
1280*800
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
85/85/85/85
85/85/85/85
80/80/80/80
85/85/85/85
85/85/85/85
Contrast Ratio
800:1
800:1
1000:1
1000:1
800:1
Backlight
LED
LED
LED
LED
LED
Brightness
450 cd/m²
450 cd/m²
600 cd/m²
500 cd/m²
350 cd/m²
Backlight Life Time
30000 hours
30000 hours
50000 hours
50000 hours
30000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Dual-core ARM 1GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
GPU
-
-
-
-
-
NPU
-
-
-
-
-
Memory
Fold up
Expand
RAM
256M
512M
512M
512M
512M
Flash Memory
4G
4GB
8GB
8GB
4GB
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
USB Slave
1
1
1
1
1
Ethernet
1
1
1
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232;
4G
-
-
-
-
-
Wi-Fi
-
-
-
-
-
Audio Interface
-
-
1
1
-
Other Interfaces
-
-
-
-
-
HDMI
-
-
-
-
-
RFID
-
-
-
-
-
Programmable Keys
-
-
-
-
-
Selector Switch
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
Grip Switch
-
-
-
-
-
LED Indicator
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
7W@24VDC
15W@24VDC
15W@24VDC
7W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Frameless, metal rear cover
Metal
Metal
Metal
Dimensions (W x H x D)
204 x 150 x 37 mm
190 x 110 x 30 mm
259.1 x 260.3 mm
296 x 240 x 39.5 mm
249 x 159 x 33 mm
Cut-out Dimensions
192 x 138 mm
154 x 86 mm
250.9 x 198.1 mm
246.8 x 185.3 mm
192 x 138 mm
Mounting
Panel mounting
Rear mounting
Rear mounting
Rear mounting
Panel mounting & Bracket mounting (75*75)
Cable
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
-
-
-
-
Serial Port Isolation
-
-
-
-
-
PCB Coating
-
-
-
-
-
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
-
-
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
