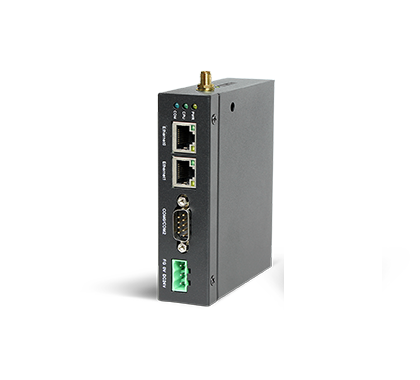

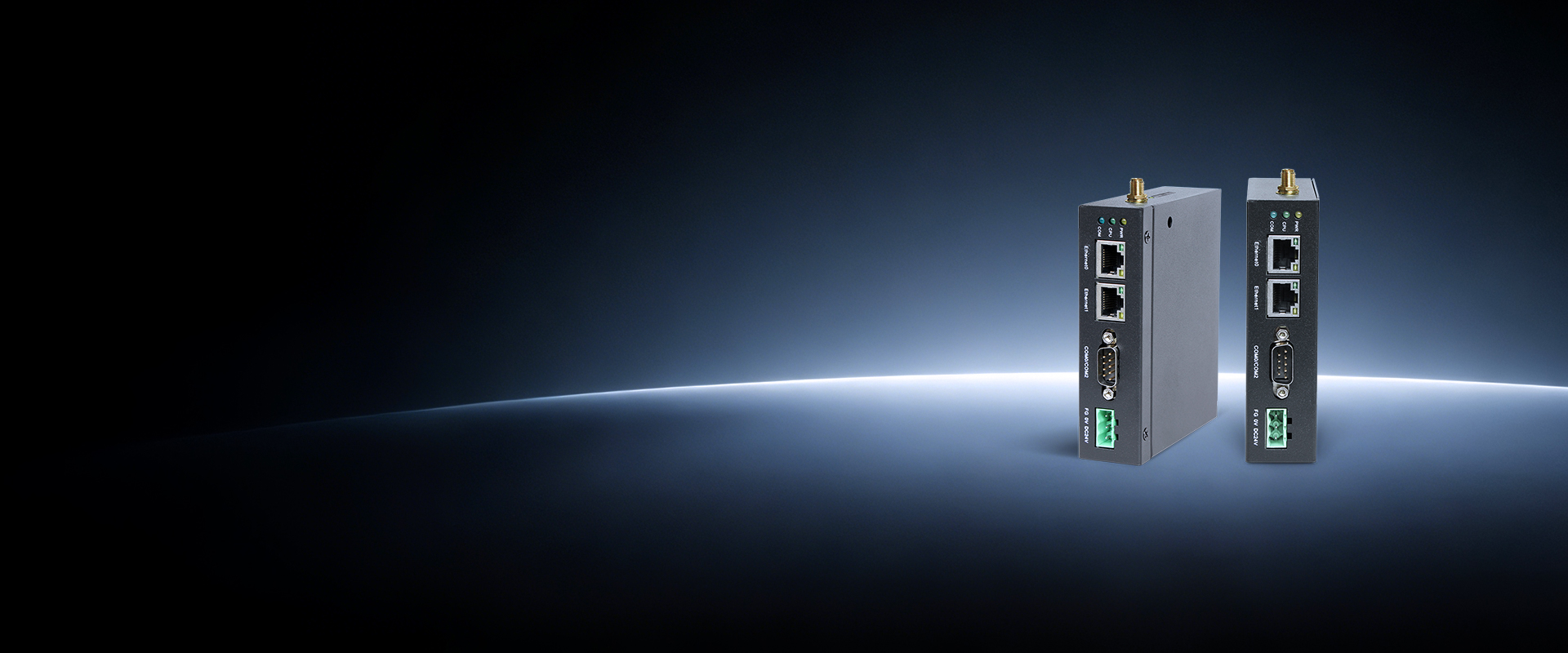

IoT Gateway Series (GW)
IoT Gateway Series (GW)
Product Model
GW01-WIFI
Add comparison
Cancel comparison
GW01-4G
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
-
--
Display Area (W x H)
-
--
Resolution
-
--
Colors
-
--
Viewing Angle (T/B/L/R)
-
--
Contrast Ratio
-
--
Backlight
-
--
Brightness
-
--
Backlight Life Time
-
--
Touch Panel
Fold up
Expand
Touch Panel
-
--
Processor
Fold up
Expand
CPU
ARM RISC32Bit 800MHz
--
GPU
-
--
NPU
-
--
Memory
Fold up
Expand
RAM
128M
--
Flash Memory
256M
--
Interfaces
Fold up
Expand
USB Host
-
--
USB Slave
1
--
Ethernet
2
--
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
--
4G
-
--
Wi-Fi
IEE802.11 b/g/n
--
Audio Interface
-
--
Other Interfaces
-
--
HDMI
-
--
RFID
-
--
Programmable Keys
-
--
Selector Switch
-
--
Emergenccy Stop
-
--
Grip Switch
-
--
LED Indicator
-
--
Electrical
Fold up
Expand
Input Power
DC12V-28V
--
Power Consumption
1.5W@24VDC
--
Voltage Interruption Immunity
<3ms
--
Insulation Resistance
>50 MΩ @ 500V DC
--
Dielectric Resistance
500V AC 1minute
--
Mechanical
Fold up
Expand
Enclosure
Metal
--
Dimensions (W x H x D)
112 x 94 x 30 mm
--
Cut-out Dimensions
-
--
Mounting
DIN rail mounting (35 mm)
--
Cable
-
--
Mounting Accessories
-
--
Environmental
Fold up
Expand
Operating Temperature
-10~55°C
--
Operating Humidity
10~90%RH (Non-condensing)
--
Storage Temperature
-20~60°C
--
Storage Humidity
10~90%RH (Non-condensing)
--
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
--
Cooling Method
Natural air circulation
--
Protection
Fold up
Expand
Power Isolation
Yes
--
Serial Port Isolation
-
--
PCB Coating
-
--
Protection Grade
IP20
--
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
--
UL Certificate
-
--
Software
Fold up
Expand
Configuration Software
Kinco DTools
--
Remote Maintenance Platform
EdgeAccess1.0
--
