Construction Machinery Panels CZ6

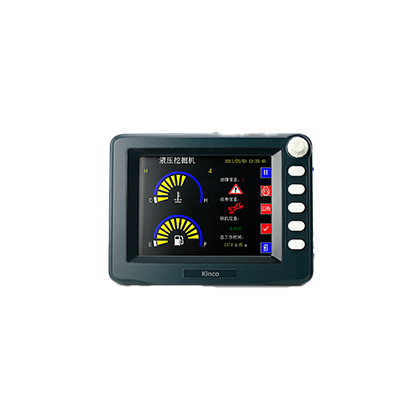

The Kinco CZ6 is a rugged 5.7-inch industrial HMI engineered specifically for construction and off-highway vehicle applications. Designed for harsh mobile environments, it features IP65 protection, wide-temperature operation, shock and vibration resistance, and isolated power and serial interfaces. Powered by an automotive-grade processor and military-specification encoder switches, and supporting CANopen, J1939, and other industry-specific protocols, it delivers reliable human-machine interaction for excavators, loaders, cranes, and heavy equipment—ensuring stable long-term operation under extreme working conditions.
Product Model
CZ6
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
5.7"
Display Area (W x H)
-
Resolution
640*480
Colors
65535
Viewing Angle (T/B/L/R)
-
Contrast Ratio
-
Backlight
LED
Brightness
700 cd/m²
Backlight Life Time
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
Processor
Fold up
Expand
CPU
RISC Cortex-A8 800MHz
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
256M
Flash Memory
256M
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
-
Communication Port
COM0:RS485;
COM2:RS232/CAN
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
1*Rotary knob
HDMI
-
RFID
-
Programmable Keys
5
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC9V-36V
Power Consumption
10W@24VDC
Voltage Interruption Immunity
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Dimensions (W x H x D)
180 x 134 x 71 mm
Cut-out Dimensions
171 x 125 mm
Mounting
Panel mounting &
Bracket mounting
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-20~70°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-30~80°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
Serial Port Isolation
-
PCB Coating
-
Protection Grade
Whole unit: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Remote Maintenance Platform
-
