Industrial WEB Panels
15.6-inch high-definition capacitive touch screen octa-core powerfulindustrial terminal, built exclusively for self-developed WEB browser
Future Series II Enhanced Capacitive Touch Screen
Kinco's new-generation Web Series industrial touch panels focus on "Halved Deployment & Simplified Maintenance". Featuring native Web technology, they support plugin-free cross-platform access. With an octa-core processor and HD capacitive touch screen, they enable smooth 3D rendering and multi-touch gestures, boosting interaction efficiency and deployment ease for industrial visualization. Ideal for digital twin and robotics integration, they help users achieve lightweight digital transformation.
15.6-inch HD capacitive touch screen with 16.77 million true colors.
Octa-core processor up to 2.2GHz with built-in GPU and NPU, supporting 3D complex scenes.
Equipped with 3 serial ports, dual Ethernet ports, metal body, three-proof design and power isolation.
Built-in browser supports 3D display, virtual keyboard, full screen and gesture operation.
Supports security certificate import, multi-server preset and custom boot screen.
Product Model

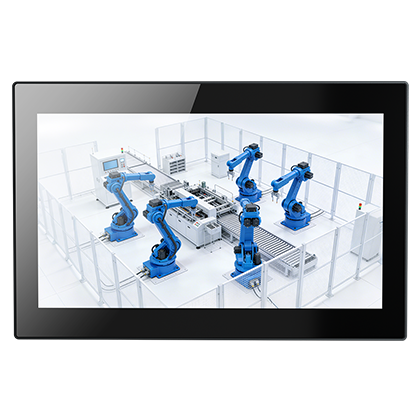

IWP156 Ultra
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
15.6"
Display Area (W x H)
344.16 x 193.59 mm
Resolution
1920*1080
Colors
16.7 million
Viewing Angle (T/B/L/R)
89/89/89/89
Contrast Ratio
1000:1
Backlight
LED
Brightness
300 cd/m²
Backlight Life Time
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Octa-core (Quad-core Cortex-A72 + Quad-core Cortex-A53) with a maximum frequency of 2.2 GHz
GPU
ARM G52 MC3
NPU
6TOPS
Memory
Fold up
Expand
RAM
4GB
Flash Memory
32GB
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
2
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
-
HDMI
-
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
Power Consumption
15W@24VDC
Voltage Interruption Immunity
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Dimensions (W x H x D)
395 x 259 x 25.5 mm
Cut-out Dimensions
382 x 246 mm
Mounting
Panel mounting & Bracket mounting (100*100)
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Serial Port Isolation
-
PCB Coating
Yes
Protection Grade
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
WEB
Remote Maintenance Platform
-
