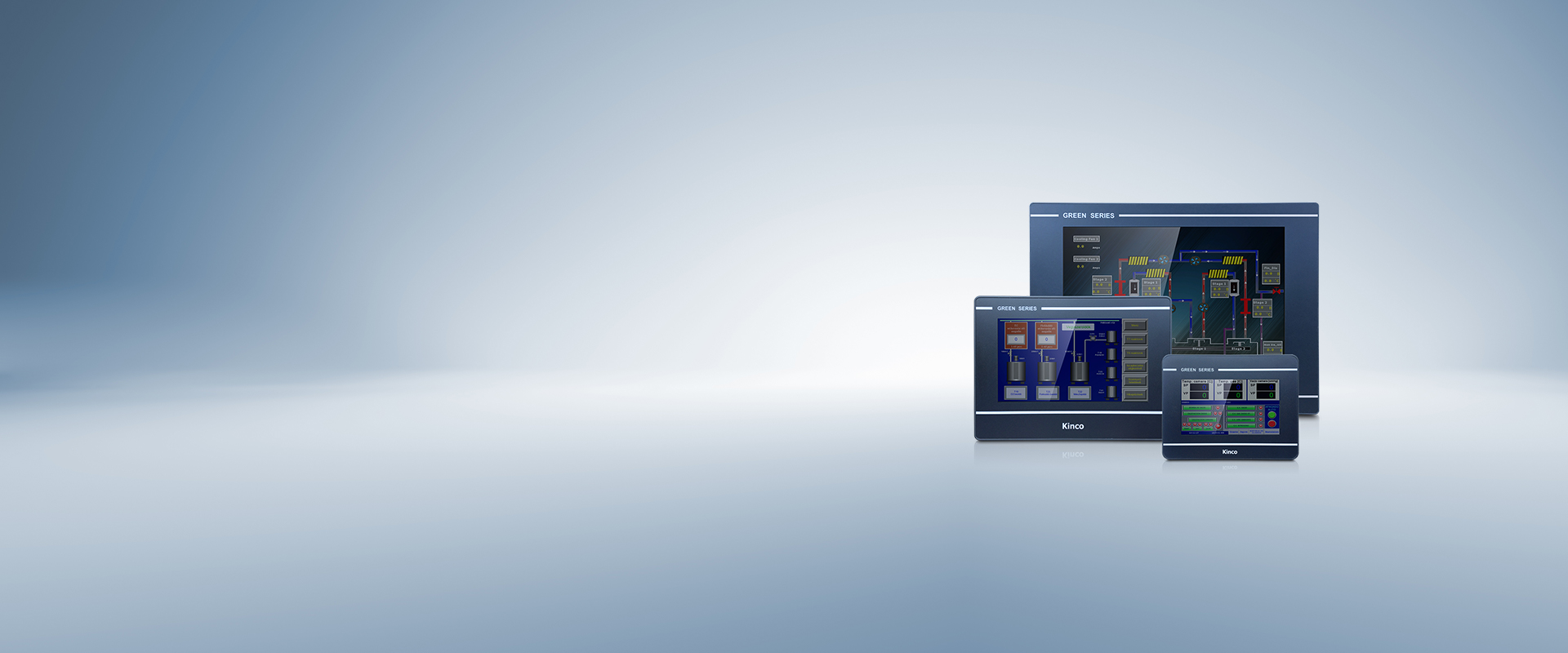

Green Series Basic (GL)

The Kinco Green Series Basic (GL) HMI delivers industrial-grade reliability and balanced performance with versatile connectivity, offering an exceptional value for small and medium-sized automation equipment. As an entry-level solution, it provides stable control and monitoring while maintaining cost efficiency for budget-conscious users. Designed for robust operation on production lines, in harsh industrial environments, and networked monitoring systems, the GL series enhances productivity, reduces maintenance costs, and ensures operational safety—making it an ideal foundational HMI for industrial automation.

Related Products

Product Model

GL043


Add comparison

Cancel comparison

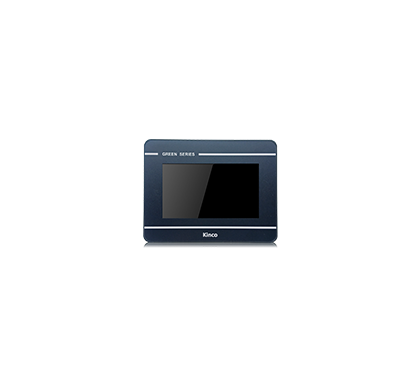

GL043E


Add comparison

Cancel comparison

GL070

GL070E (1)b.png

Add comparison

Cancel comparison

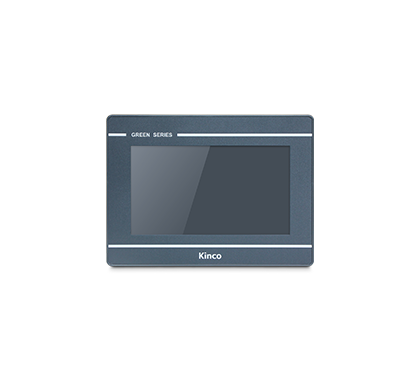

GL070E

GL070E (1)b.png

Add comparison

Cancel comparison

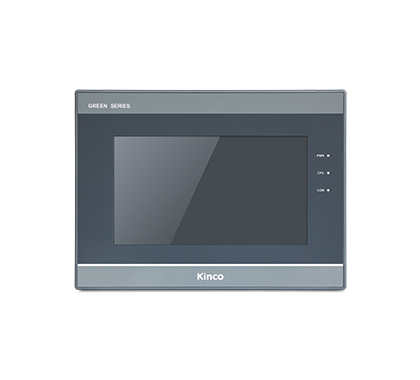

GL100

G100 (1).png

Add comparison

Cancel comparison

GL100E

G100 (1).png

Add comparison

Cancel comparison

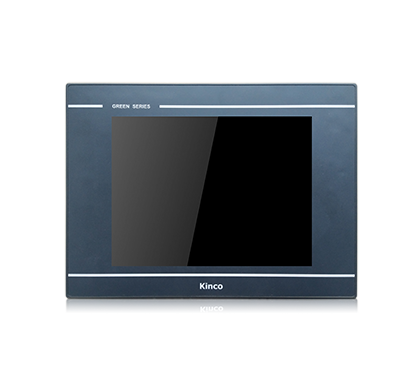

GL104E

GL104E Front 4.png

Add comparison

Cancel comparison

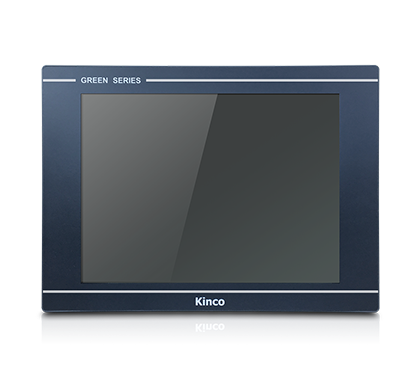

GL150E


Add comparison

Cancel comparison

Slide to display more

Display

Fold up

Expand

Display Size

4.3"

4.3"

7"

7"

10.1"

10.1"

10.4"

15"

Display Area (W x H)

95.04 x 53.86 mm

95.04 x 53.86 mm

154.08 x 85.92 mm

154.08 x 85.92 mm

222.72 x 125.28 mm

222.72 x 125.28 mm

211.2 x 158.4 mm

304.13 x 228.1 mm

Resolution

480*272

480*272

800*480

800*480

1024*600

1024*600

800*600

1024*768

Colors

16.7 million

16.7 million

16.7 million

16.7 million

16.7 million

16.7 million

16.7 million

65535

Viewing Angle (T/B/L/R)

50/70/70/70

50/70/70/70

60/70/70/70

60/70/70/70

85/85/85/85

85/85/85/85

60/70/70/70

80/80/80/80

Contrast Ratio

500:1

500:1

500:1

500:1

500:1

500:1

500:1

500:1

Backlight

LED

LED

LED

LED

LED

LED

LED

LED

Brightness

450 cd/m²

450 cd/m²

450 cd/m²

450 cd/m²

300 cd/m²

300 cd/m²

350 cd/m²

420 cd/m²

Backlight Life Time

30000 hours

30000 hours

30000 hours

30000 hours

30000 hours

30000 hours

30000 hours

50000 hours

Touch Panel

Fold up

Expand

Touch Panel

4-wire resistive type

4-wire resistive type

4-wire resistive type

4-wire resistive type

4-wire resistive type

4-wire resistive type

4-wire resistive type

4-wire resistive type

Processor

Fold up

Expand

CPU

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

ARM RISC32Bit 800MHz

GPU

-

-

-

-

-

-

-

-

NPU

-

-

-

-

-

-

-

-

Memory

Fold up

Expand

RAM

128M

128M

128M

128M

128M

128M

128M

128M

Flash Memory

256M

256M

256M

256M

256M

256M

256M

256M

Interfaces

Fold up

Expand

USB Host

-

-

1

1

1

1

1

1

USB Slave

1

1

1

1

1

1

1

1

Ethernet

-

1

-

1

-

1

1

1

Communication Port

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

4G

-

-

-

-

-

-

-

-

Wi-Fi

-

-

-

-

-

-

-

-

Audio Interface

-

-

-

-

-

-

-

-

Other Interfaces

-

-

-

-

-

-

-

-

HDMI

-

-

-

-

-

-

-

-

RFID

-

-

-

-

-

-

-

-

Programmable Keys

-

-

-

-

-

-

-

-

Selector Switch

-

-

-

-

-

-

-

-

Emergenccy Stop

-

-

-

-

-

-

-

-

Grip Switch

-

-

-

-

-

-

-

-

LED Indicator

-

-

-

-

-

-

-

-

Electrical

Fold up

Expand

Input Power

DC10V-28V

DC10V-28V

DC10V-28V

DC10V-28V

DC10V-28V

DC10V-28V

DC10.8V-28V

DC10.8V-28V

Power Consumption

2W@24VDC

2W@24VDC

3.6W@24VDC

3.6W@24VDC

6W@24VDC

6W@24VDC

8W@24VDC

16W@24VDC

Voltage Interruption Immunity

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

Insulation Resistance

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

Dielectric Resistance

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

Mechanical

Fold up

Expand

Enclosure

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Dimensions (W x H x D)

132 x 102 x 33 mm

132 x 102 x 33 mm

204 x 150 x 37.2 mm

204 x 150 x 37.2 mm

271 x 191 x 36 mm

271 x 191 x 36 mm

310 x 230 x 56 mm

398 x 298 x 47 mm

Cut-out Dimensions

119 x 93 mm

119 x 93 mm

192 x 138 mm

192 x 138 mm

260 x 179 mm

260 x 179 mm

299 x 219 mm

383 x 283 mm

Mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Cable

-

-

-

-

-

-

-

-

Mounting Accessories

-

-

-

-

-

-

-

-

Environmental

Fold up

Expand

Operating Temperature

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

-10~55°C

Operating Humidity

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

Storage Temperature

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

Storage Humidity

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

Vibration Resistance

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

10-500Hz, 30m/s², 1 hour each for X, Y, Z directions

Cooling Method

Natural air circulation

Natural air circulation

Natural air circulation

Natural air circulation

Natural air circulation

Natural air circulation

Natural air circulation

Natural air circulation

Protection

Fold up

Expand

Power Isolation

-

-

-

-

-

-

Yes

Yes

Serial Port Isolation

-

-

-

-

-

-

-

-

PCB Coating

-

-

-

-

-

-

-

-

Protection Grade

Front panel: IP65

Front panel: IP65

Front panel: IP65

Front panel: IP65

Front panel: IP65

Front panel: IP65

Front panel: IP65

Front panel: IP65

Certifications

Fold up

Expand

CE Certificate

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

EN61000-6-4:2007+1：2011，EN61000-6-2:2005

UL Certificate

-

-

-

-

-

-

-

-

Software

Fold up

Expand

Configuration Software

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Remote Maintenance Platform

-

EdgeAccess1.0

-

EdgeAccess1.0

-

EdgeAccess1.0

EdgeAccess1.0

EdgeAccess1.0
